Bosch Performance Line CX, 600W, 85Nm, 25km/h
Description

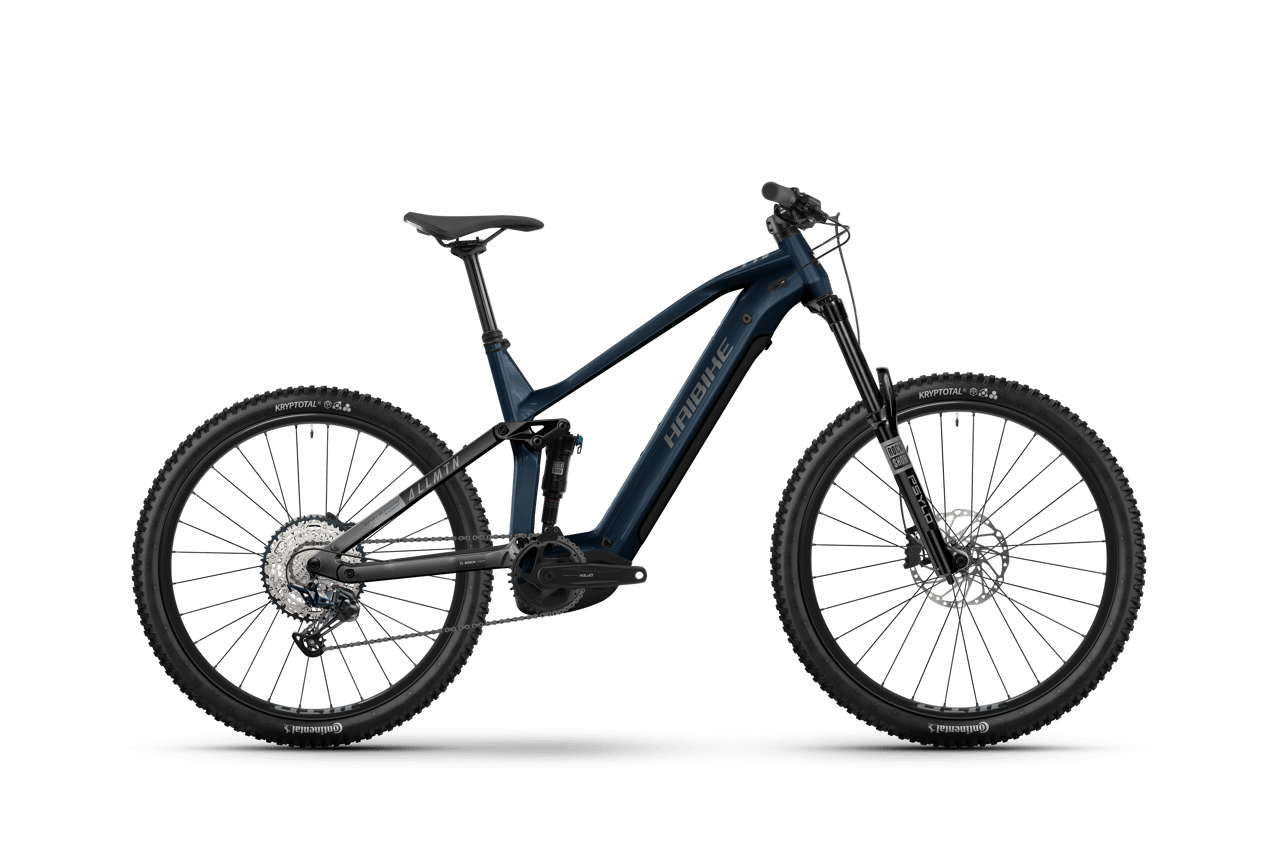

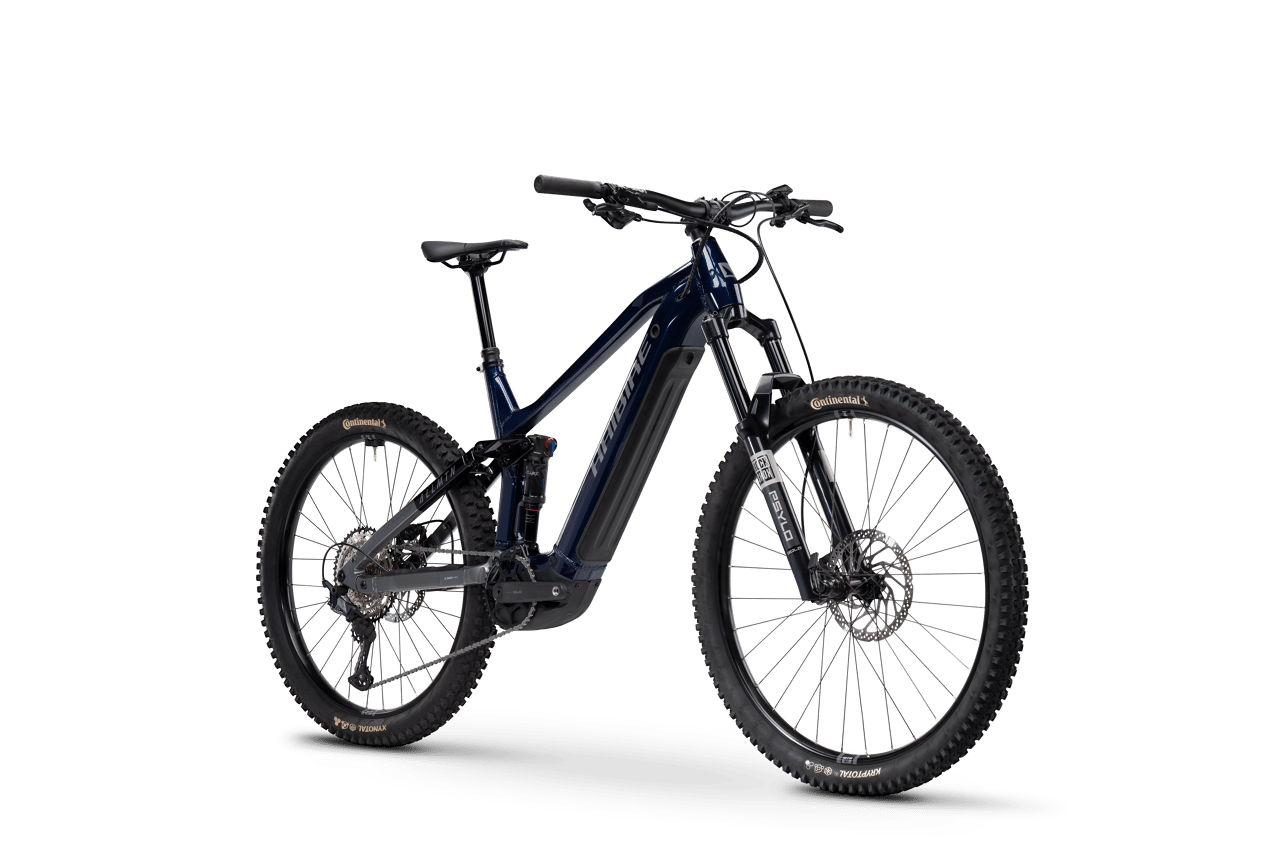

Climb every peak, enjoy every valley. With our new ALLMTN 6, you’re perfectly equipped for any mountain adventure – uphill, downhill, and even when the terrain gets rough. The foundation of this versatility is our specially developed all-mountain frame platform, paired with the powerful Bosch Performance CX motor, making no trail too steep. The rest of the setup also delivers, featuring a mullet wheel mix, 160mm front travel, 150mm rear travel and sharp Shimano disc brakes. The 800Wh battery ensures you have plenty of endurance for those long climbs, and with the optional Range Extender, you can take your range even further. Ideal conditions to experience the best of both the peaks and valleys – anywhere you ride.
Description
Climb every peak, enjoy every valley. With our new ALLMTN 6, you’re perfectly equipped for any mountain adventure – uphill, downhill, and even when the terrain gets rough. The foundation of this versatility is our specially developed all-mountain frame platform, paired with the powerful Bosch Performance CX motor, making no trail too steep. The rest of the setup also delivers, featuring a mullet wheel mix, 160mm front travel, 150mm rear travel and sharp Shimano disc brakes. The 800Wh battery ensures you have plenty of endurance for those long climbs, and with the optional Range Extender, you can take your range even further. Ideal conditions to experience the best of both the peaks and valleys – anywhere you ride.
Geometry
| Component | S | M | L | XL |
|---|---|---|---|---|
| B: Top Tube legth (mm) | 567 mm | 594 mm | 628 mm | 662 mm |
| C: Head tube length (mm) | 130 mm | 130 mm | 135 mm | 140 mm |
| D: Head Tube Angle | 64.5° | 64.5° | 64.5° | 64.5° |
| E: Seat Tube Angle | 75° | 75° | 75° | 75° |
| F: Chain stay length (mm) | 455 mm | 455 mm | 455 mm | 455 mm |
| G: Wheelbase (mm) | 1206 mm | 1233 mm | 1268 mm | 1303 mm |
| H: Stack (mm) | 651 mm | 651 mm | 656 mm | 660 mm |
| I: Reach (mm) | 408 mm | 435 mm | 468 mm | 501 mm |
| J: Stand over height (mm) | 77 cm | 77 cm | 76 cm | 76 cm |
| K: Bottom bracket drop (mm) | 20 mm | 20 mm | 20 mm | 20 mm |
Specifications
e-System
e-System
Battery: Bosch PowerTube 800Wh
Charger: Bosch Charger 4A 220-240V
Display: Bosch Kiox 300 + LED Remote

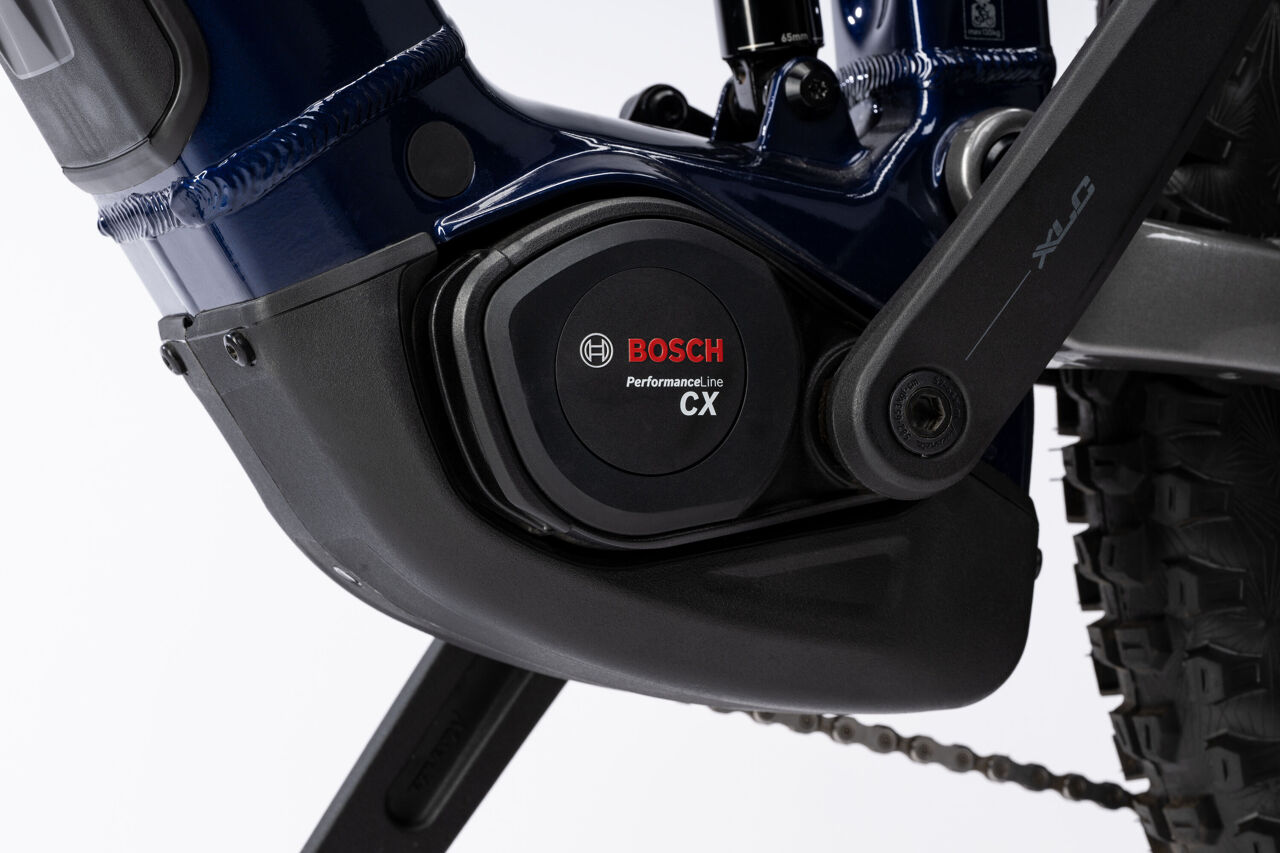

Motor: Bosch Performance Line CX, 600W, 85Nm, 25km/h
Frame
Frame
Frame: aluminium, disc brake Post Mount
Maximum loadable weight: 135kg
Drive
Drive
Cassette:
Chain: Shimano Deore CN-M6100 12s
Crankset:
Derailleur Rear: Shimano SLX RD-M7100-SGS 12s, Shadow+, 12-speed
Gear:
Number of gears: 12-speed
Shifter Right: Shimano Deore SL-M6100-R, Rapidfire+, Trigger shifter
Suspension
Suspension

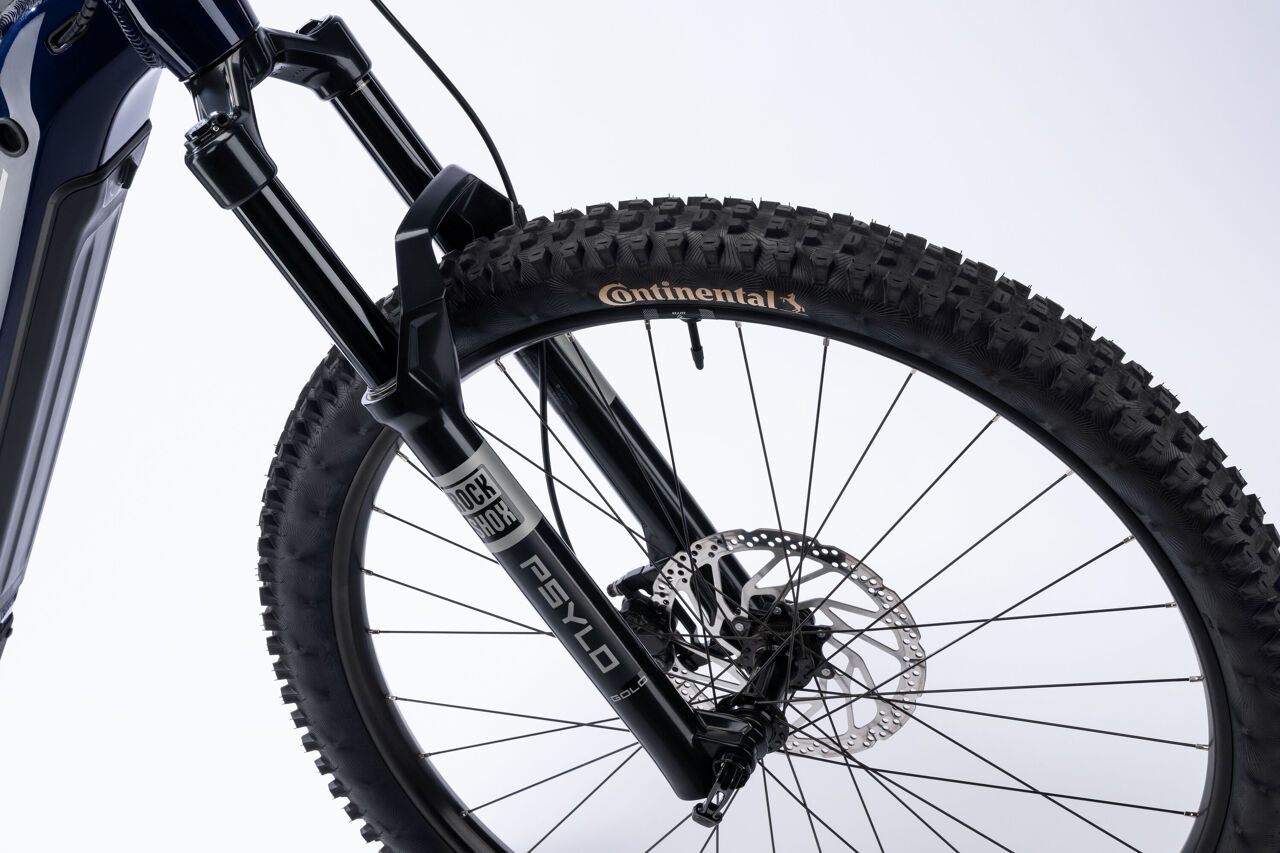

Front Fork: RockShox Psylo Gold RC, Crown Adj, DebonAir, Offset: 44 mm, Travel: 160mm
Travel:
Shock:

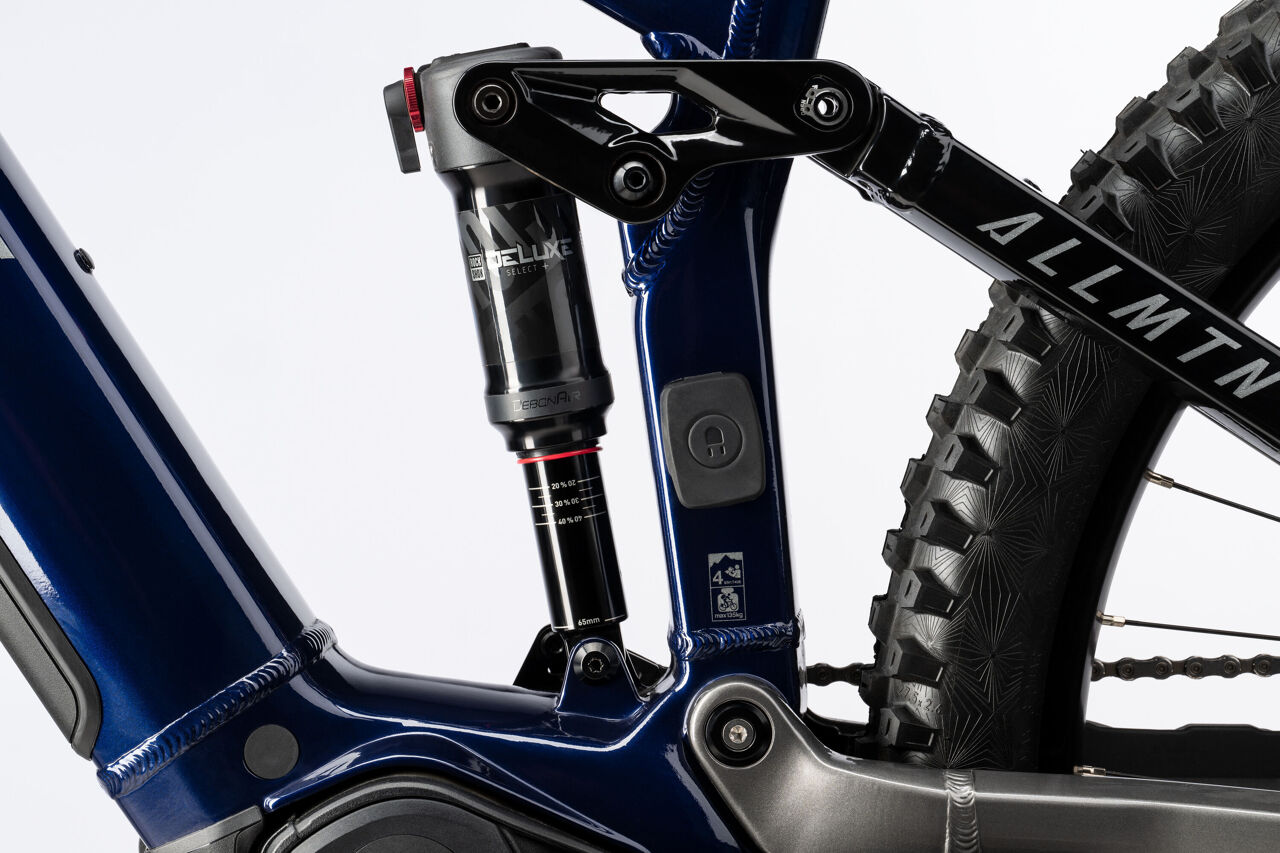

Damper: RockShox Deluxe Select+ RT 205x65mm, Trunnion, DebonAir+
Rear Travel:
Components
Components
Brake light:
Front Brake: Shimano Deore BR-MT420, 4 pistons, resin pad, 203 mm
Rear Brake: Shimano Deore BR-MT420, 4 pistons, resin pad, 203 mm
Headlight:
Rear Light:
Grips: XLC MTB Grip Set VLG-1751D2

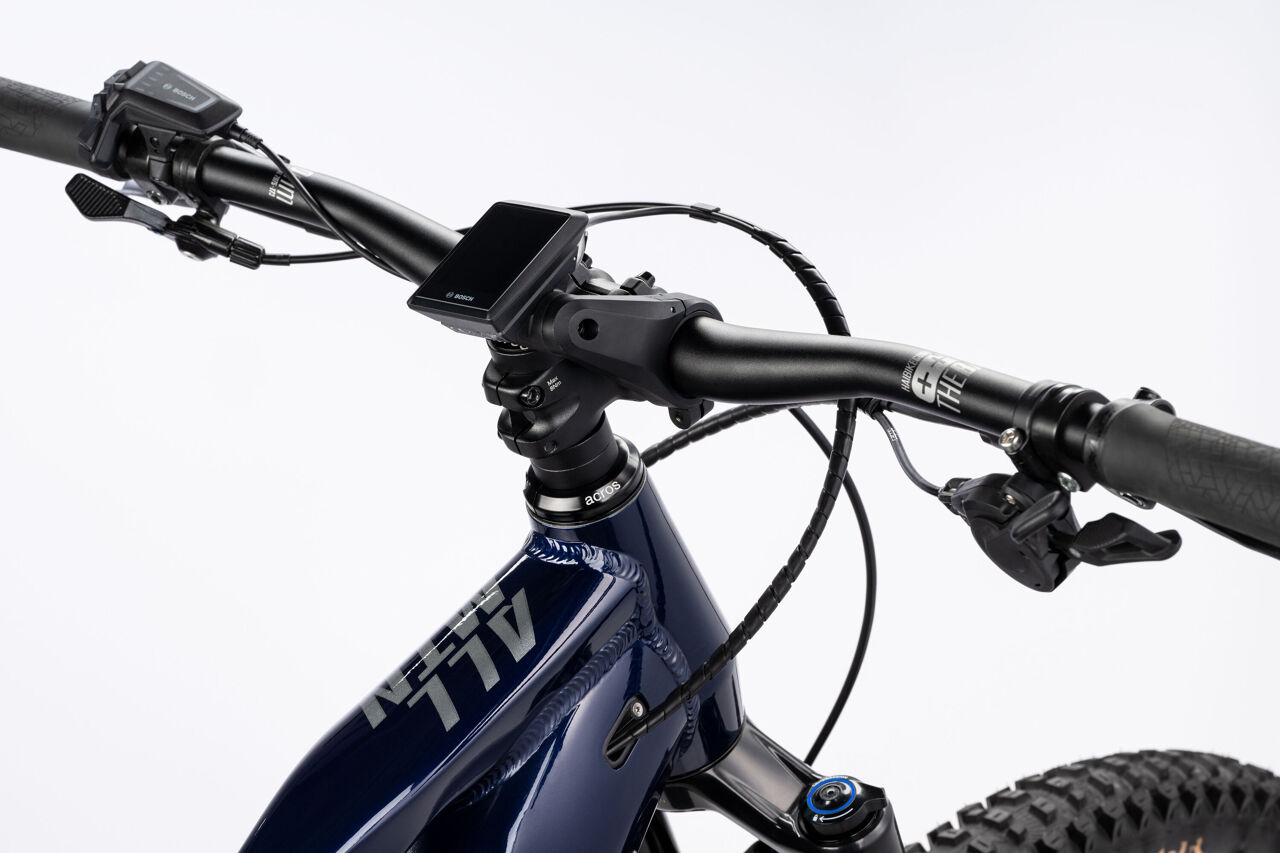

Handlebar: Haibike TheBar++ Dia. 31.8 mm 780 mm
Pedal: VP Components VPE-527 Alloy w/ Reflector
Saddle: Prologo Proxim W400 T2.0 153 mm
Seatpost: Limotec A1H Dropper, Dia. 34.9 mm, Travel: 150 mm
Wheelset
Wheelset
Front wheel set:
Rear wheel set:
Rim: WTB ST i30 TCS 2.0 29" 32H
Tyre: Continental Kryptotal-Fr, Trail Endurance, foldable skin SL, 60-622
Documents
Documents
*The illustration above is an example. We reserve the right, as long as the type, suitability and purpose of the bike are not reduced, to replace individual parts with components of the same or higher quality, so that the bike is delivered differently. The use of other components is currently mainly caused by delivery problems
