AllMtn 10
SKU: HMMN1
£5,999.00
Includes VAT
Description
Are you looking for a versatile and superbly-equipped eMTB with the best climbing properties combined with maximum downhill performance? Then our Haibike ALLMTN 10 will give you that feeling of perfect flow on the trails. The mixed wheel sizes offer you a confidence inspiring rollover behavior downhill and optimal traction uphill. The compact and powerful Yamaha PW-X3 motor lets you conquer even the steepest climbs without breaking a sweat. With 720 Wh battery power you also have enough reserves for extensive tours which you can increase even further with the optional 360 Wh Range Extender. The 160 mm FOX 38 Factory Kashima air suspension fork alongside Shimano Deore XT shifting and braking components ensure smooth riding fun, even in more obstacle strewn challenging terrain.
Specifications
Battery
Yamaha InTube 750 Wh
Battery brand
Yamaha
Charger
Yamaha Quick Charger 4A
Display
Yamaha Interface - X
E-bike system
Yamaha
Maximum support speed
25 km/h
Motor
Yamaha PW-X3 Series
Motor torque (nm)
85 Nm
Bottom Bracket
integrated in the motor
Cassette
Shimano M6100
Chain
Shimano Chain SLX M7100
Crankset
Haibike The Crank ++
Derailleur Rear
Shimano Deore XT M8100 Shadow Plus
Frame
MTB Fully Aluminium
Frame material
Aluminium
Frame shape
MTB Fully
Gear
Shimano Derailleur
Maximum loadable weight
120 kg
Number of gears
12
Shifter Right
Shimano Triggershift Deore XT M8100
Front Fork
FOX Factory 38 Factory Kashima 160 mm
Shock
FOX Factory Air Float X Factory EVOL LV 160 mm
Travel
160 mm
Brake light
No
Brake Rear
Shimano Hydraulic Disc brake Deore XT M8120
Front brake
Shimano Hydraulic Disc brake Deore XT M8120
Grip kind
MTB grips
Handgrip brand
Haibike
Handlebar
Haibike TheBar +++ Dia. 31.8 mm
Pedal
Freeridepedal
Saddle
Fizik Terra Aidon X5-160
Seatpost
Haibike Dropperpost
Front wheel size
29
Rear wheel size
27.5

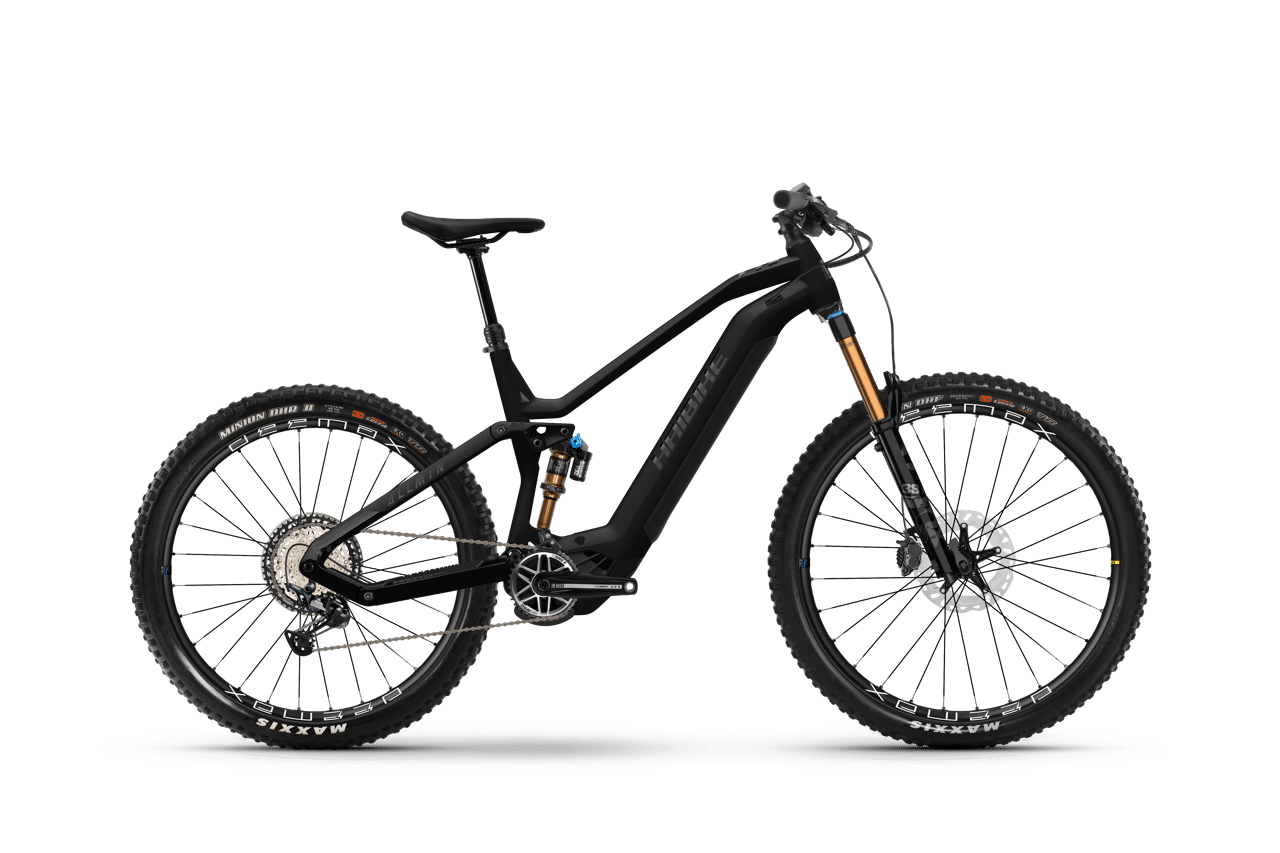

*The illustration above is an example. We reserve the right, as long as the type, suitability and purpose of the bike are not reduced, to replace individual parts with components of the same or higher quality, so that the bike is delivered differently. The use of other components is currently mainly caused by delivery problems due to the Corona pandemic.
